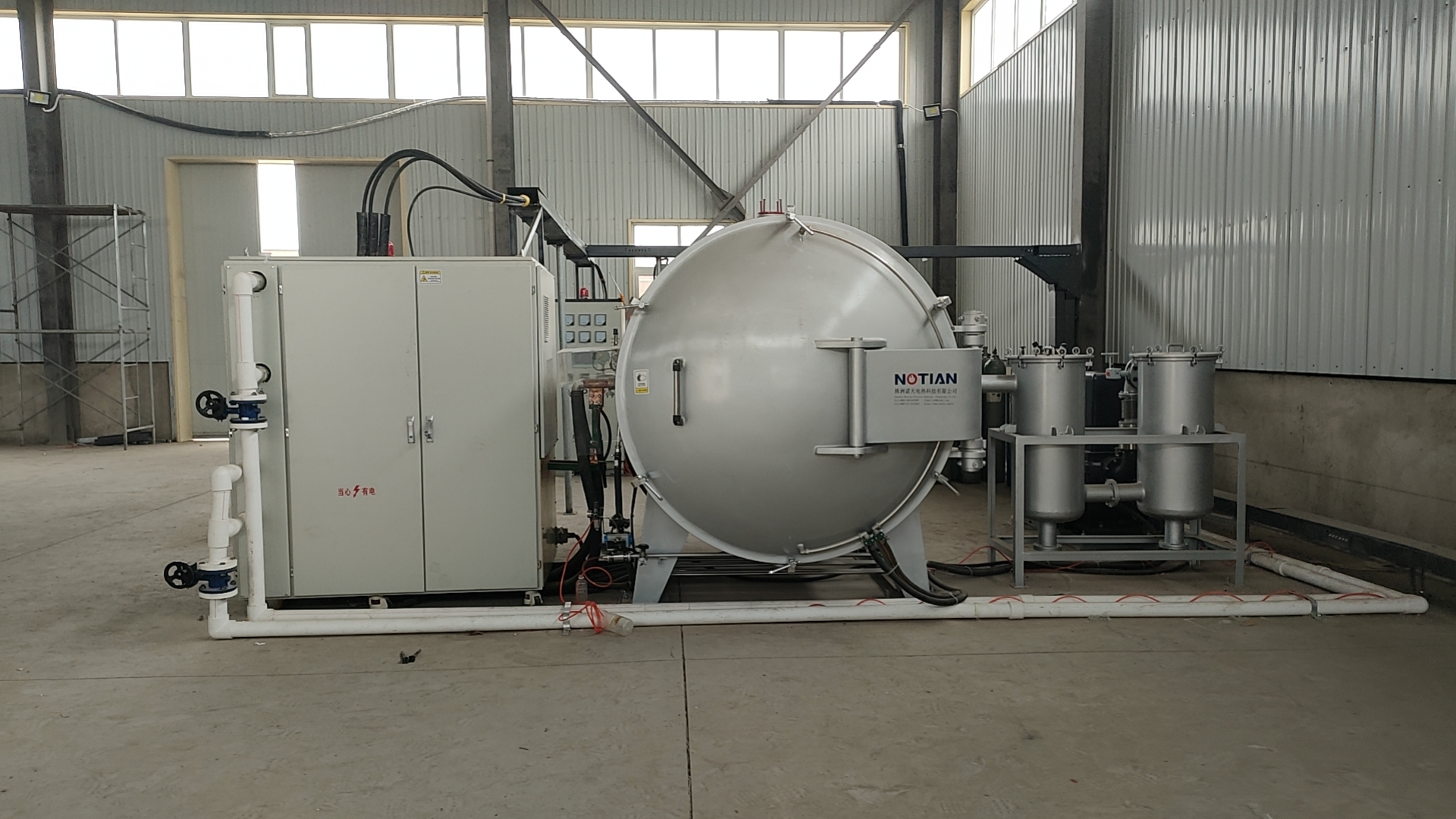

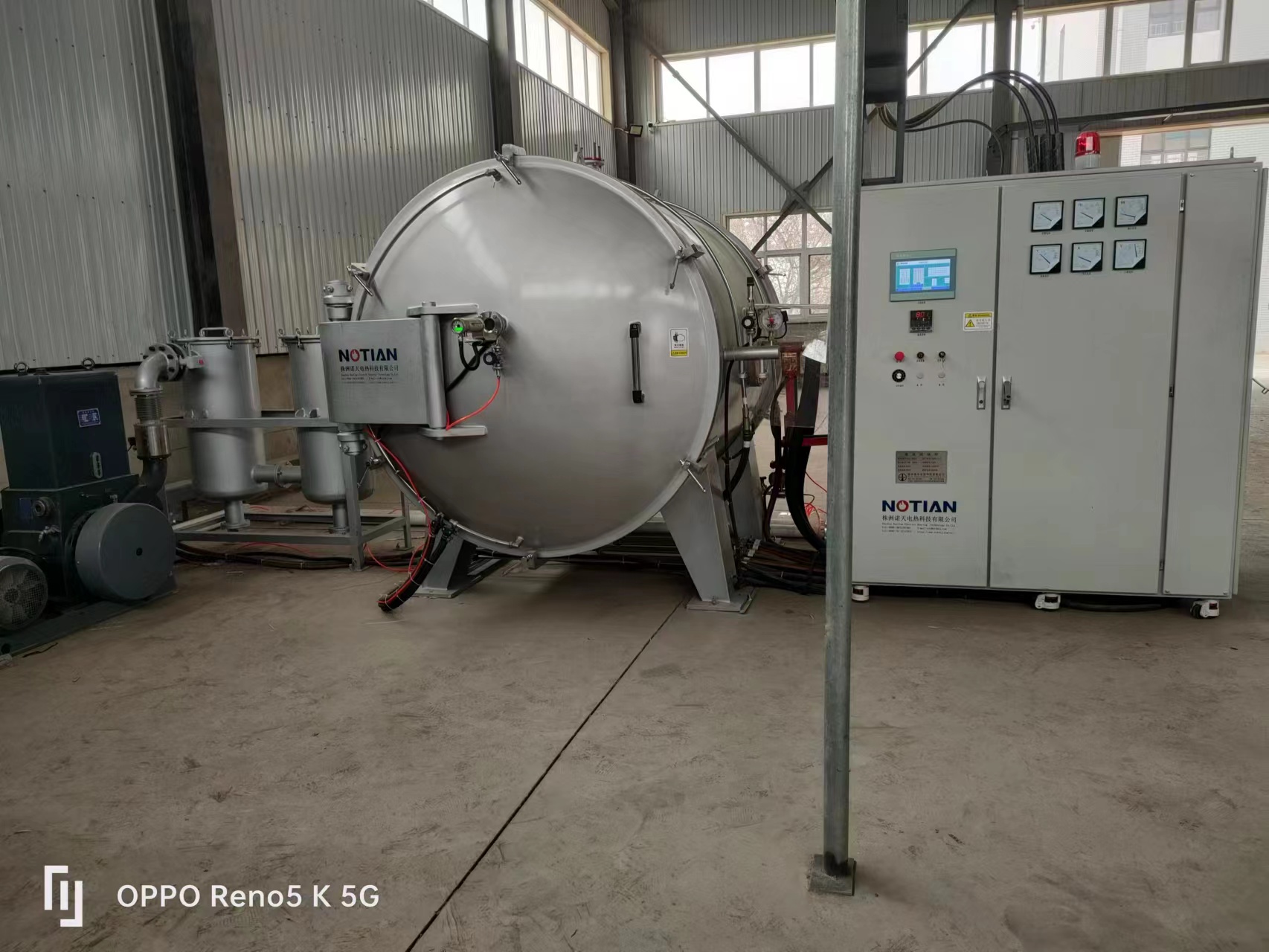

application:
1.the equipment is batch type induction furnace, mainly used for sintering oftungsten carbide,carbide alloy,silicon carbide, boron carbide, polysilicon material, calcium carbide, rare earth oxide,diamond,radiation proof material,zirconia,sapphire, metal, billets, powder metallurgy, gemstone, rhenium material, nd2fe14b, neodymium magnet,boron nitrogen,vanadium carbide powder and such as metal powder and composite metal powder.
2.configuration:
380v±5%，50hz/60hz 3 phase 5 wire
one control cabinet to one furnace and optional for one to two type or one to four type.
the facility equipped of cooling tower or gas purifier for optional.
3.technology parameter:
|
model parameter |
lab usage |
production usage |
|||||
|
nti-sjl-54w |
nti-sjl-98w |
nti-sjl-300w |
nti-sjl-400w |
nti-sjl-1280w |
nti-sjl-1620w |
||
|
working size |
mm |
300×300×600 |
350×350×800 |
500×500×1200 |
500×500×1600 |
800×800×2000 |
900×900×2000 |
|
heating type |
/ |
if induction heating |
|||||
|
crucible |
/ |
graphite |
|||||
|
control type |
/ |
thyristor control or igbt control ( optional ) |
|||||
|
ht zone capacity |
l |
54 |
98 |
300 |
400 |
1280 |
1620 |
|
loading weight |
g |
ht zone capacity × density (g/cm³)×1000 remark：1l=1000cm³ |
|||||
|
ultimate vacuum |
pa |
20 |
|||||
|
if power |
kw |
120 |
160 |
200 |
250 |
400 |
600 |
|
max. working temperature |
℃ |
2500 |
2500 |
2500 |
2500 |
2500 |
2500 |
|
usual working temperature |
℃ |
2400 |
2400 |
2400 |
2400 |
2400 |
2400 |
|
temperature unifomity |
℃ |
±10 |
±10 |
±10 |
±10 |
±10 |
±10 |
|
overall dimension |
mm |
|
|
|
|
|
|
|
weight |
kg |
|
|
|
|
|
|
|
working environment |
/ |
vacuum or argon atmosphere protection( micro positive pressure) |
|||||
you can customize it as per your real requirement.

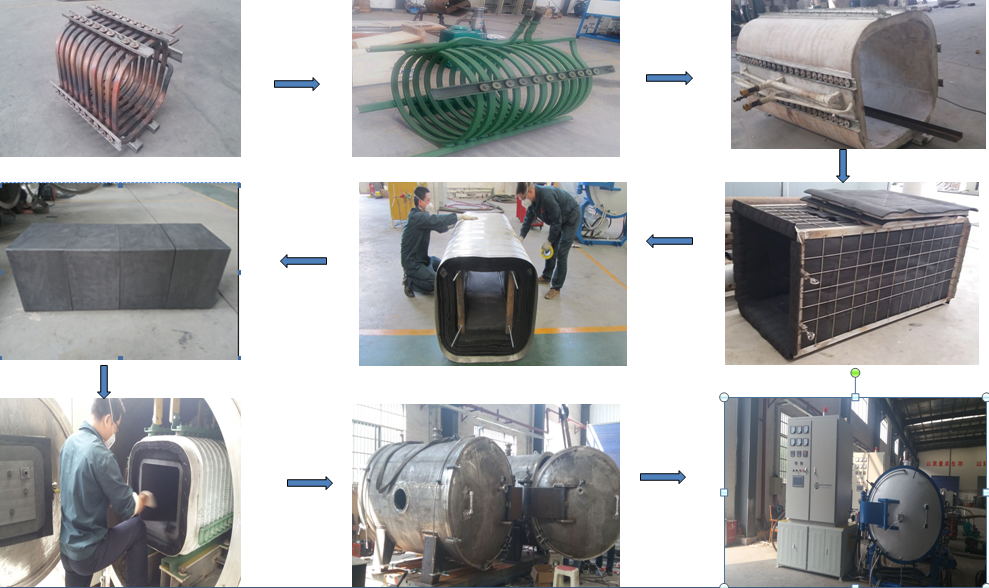

production procedure

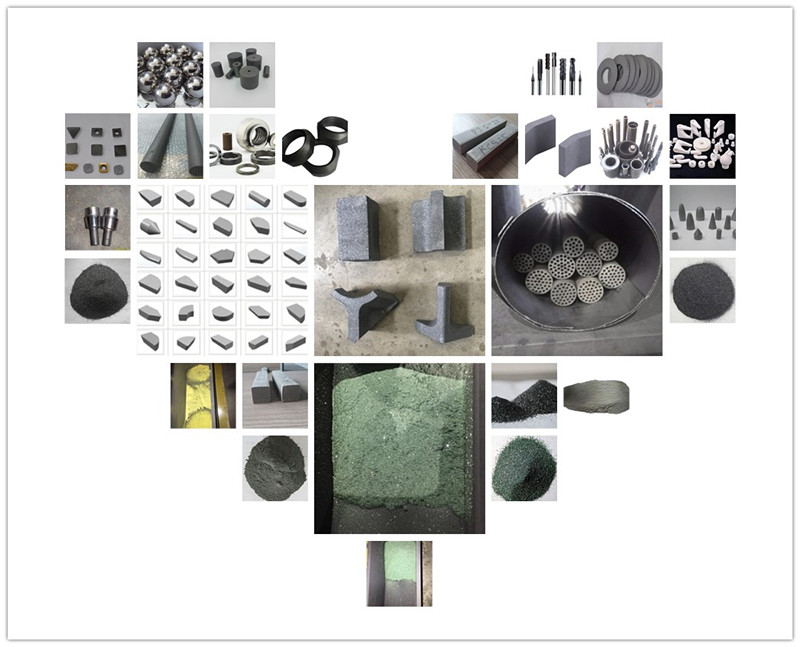

raw material suitable for heating

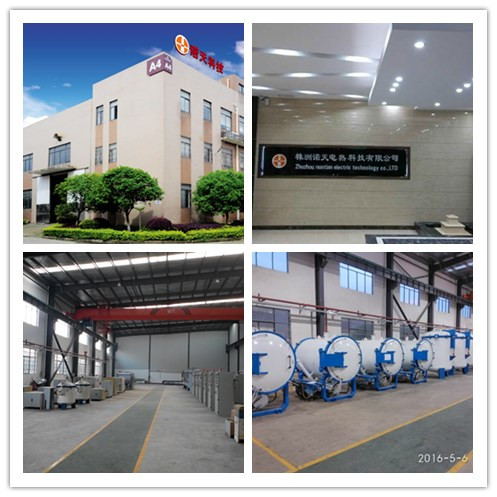

company information
we are real and professional oem of industry furnace over 10 years who has 10 staff of designer and technican experienced for years,
main manufacturing products: graphitization furnace, carbonization furnace, resistance furnace, de-rubber furnace, de-wax furnace, de-grease furnace,laboratory furnace,sintering furnace, melting furnace, quenching equipment, hardening equipment,
anneal equipment and tempering equipment.
if heating device,ultra audio induction heating equipment,
if diathermy, hardening, welding equipment,
if bending pipe machine, cooling tower,
graphite crucible, hard composite carbon felt
and such related industry products.
clients visit
we have lots of famous clients from the world like korea, vietnam, thailand, malysia, russia, georgia, ukraine and so on.
honor of qualification

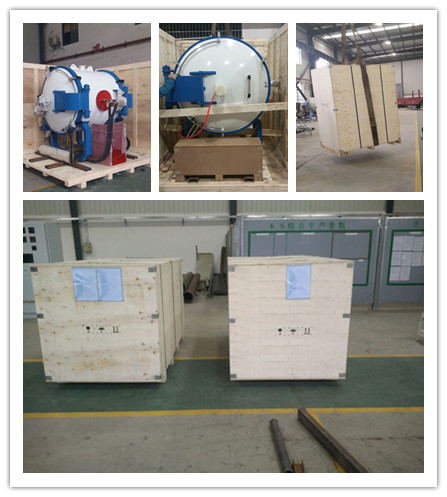

packing mode
service
1.special size and requirement furnace can be customized.
2.the using method and operation and related knowledge taught by our engineer before shipment.
3.engineers available to service machinery overseas after-sales service provided.
4.payment terms: t/ t.
5.price terms: fobguangzhou, china
6.transport way: by sea, we have good forwarders, super service and price !
7.delvery time: estimated time of delivery is 60 days after confirming to receive the deposit payment.
8.1 year of warranty.
9.other services: we can produce furnace according to your drawing design or requirements.
better technology, better quality, better price and better service.
